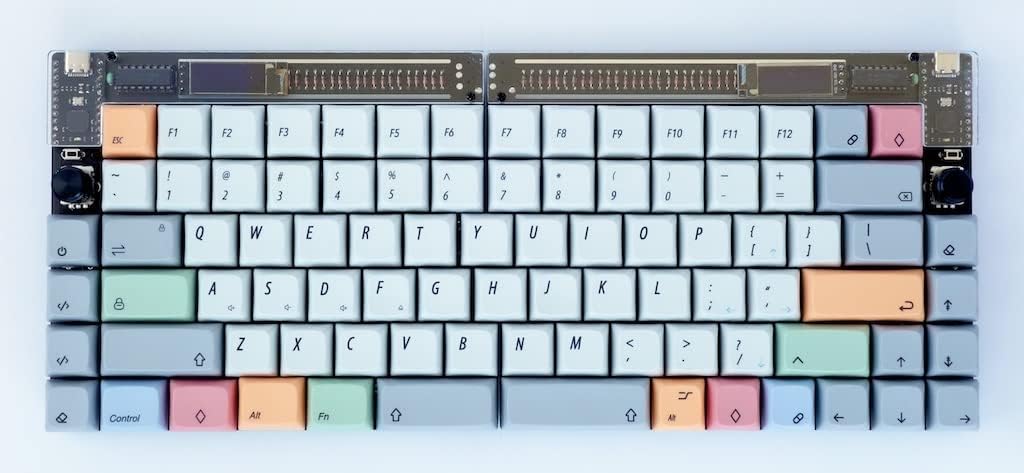

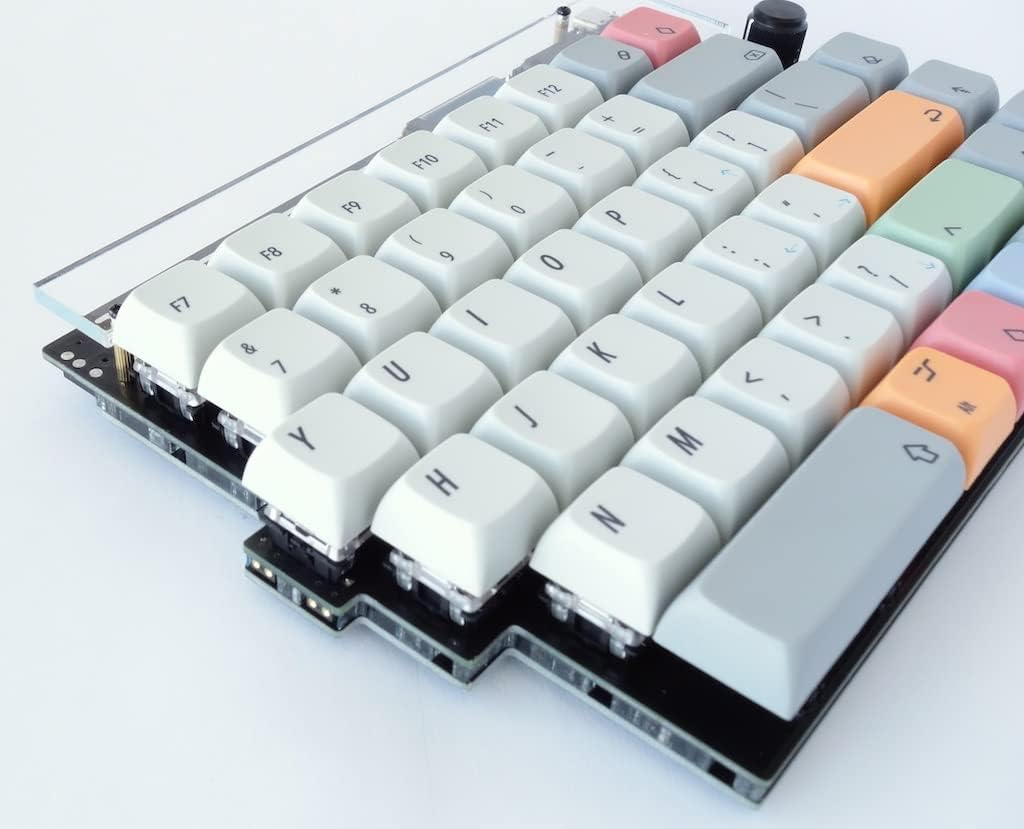

SNAP 75% Mechanical Keyboard Kit (Black)

A stylish, 75% split The SNAP is a 75% split mechanical keyboard kit with support for 2 rotary encoders, 2 OLED displays, speaker, and RGB underglow. We took all the best parts of the NIBBLE and added some of the most popular requests: true split shift/space/backspace. The SNAP is configurable, programmable, and easily assembled. 100% through hole design The SNAP uses a Pro Micro MCU instead of a discrete micro-controller chip. It offers the fun and aesthetic of a kit without having to worry about soldering the difficult bits like USB connectors. All required parts diodes, caps, and ICs) are through-hole, meaning they're easy and forgiving to solder. underglow LEDs are surface-mount Multiple Layout Options Use the SNAP in split mode, or snap it whoa, get it?) together for a more traditional layout. Strong internal magnets hold the two sides together and magical spring-loaded pogo pin contacts mean there's no need for a TRRS cable when the two sides are attached. The SNAP supports many configurations and layouts: Split space/backspace, split shift, ISO enter, and more. Since it runs QMK firmware and uses VIA, it's easy to change keymaps, program macros, and customize functionality. RGB underglow ready 10x optional bottom-mounted SMT LEDs shine nicely through the acrylic support material. Included Top & bottom PCB Acrylic supports M2 standoffs & screws Diodes, ICs, decoupling caps, reset switch RGB underglow, speaker, magnets, and pogo pins Rotary encoder & color-matched knob TRRS cable and mini bumpons Not included 2x Bit-Cs or Pro Micro Compatible MCU MX-compatible switches & keycaps PCB-mount stabilizers NOTE: This is a kit which requires assembly and soldering! Bit-Cs, switches, keycaps, and other accessories are sold separately

• The SNAP is a high-quality split 75% keyboard kit with tons of room for customization
• Use the SNAP together, or separate! It snaps together for a traditional 75% layout or pulls apart for use as a split board
• Built around a Pro Micro, rather than a discrete microcontroller. This saves assembly time, and also reduces the build difficulty
• All required parts (diodes, caps, and ICs) are through-hole, meaning they're easy and forgiving to solder
• RGB underglow ready: 10x optional bottom-mounted SMT LEDs shine nicely through the acrylic support material. RGB underglow is supported natively in QMK, allowing for easy programming and configuration
