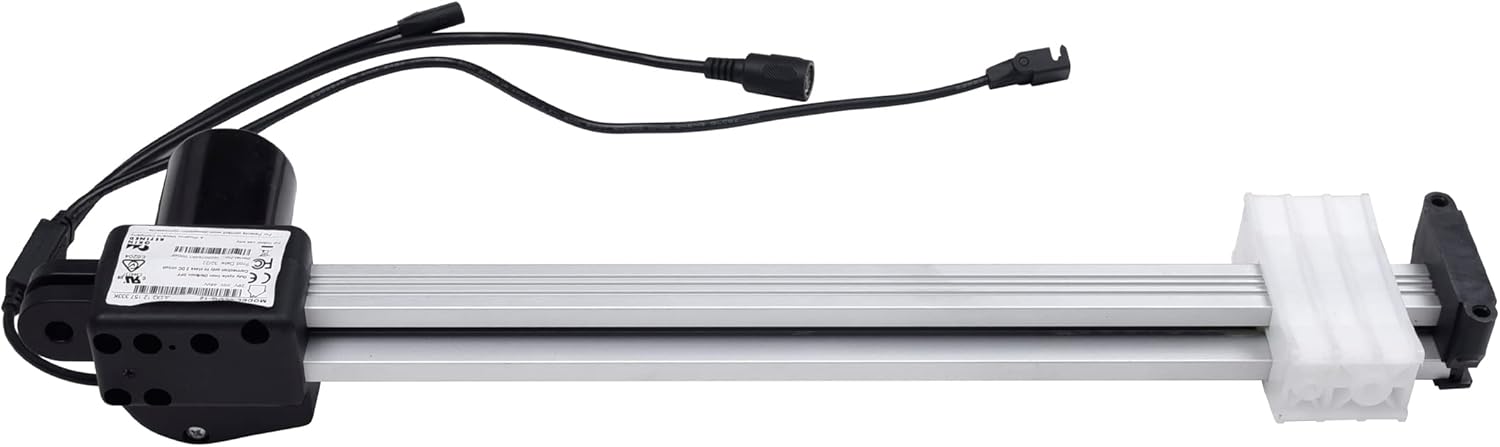

Okin Model JLDQ-12 & JLDQ.12.157.333K Power Recliner Motor, Electric Sofa Lift Chair Actuator Replacement Part for JLDQ.12.157.333E/F/G/H/L/P/U/V/W/Z
Product details
| Management number | 221200264 | Release Date | 2026/05/03 | List Price | US$35.60 | Model Number | 221200264 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Okin Refined-R Model: JLDQ.12.157.333K Recliner Motor. This is original Okin JLDQ motor Technical data: Load: Push force:750N, Pull force:750N Stroke: 333 mm, move with slide block Operation frequency: On 1 min/Off 8min The motor is suggested to replace OKIN model JLDQ.12.157.333K, also can replce JLDQ.12.157.333E/F/G/H/K/L/P/U/V/W/Z series, a little difference but not affect use. Please check your motor brand and model first.
- APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs. The motor is suggested to replace OKIN model JLDQ.12.157.333K, also can replce JLDQ.12.157.333E/F/G/H/K/L/P/U/V/W/Z series, a little difference but not affect use. Please check your motor brand and model first.
- DESCRIPTION: The actuator motor set is made of 1 motor and 3 connectors, connector with 5-pin round plug is for switch hand control, connector with 2-pin square plug and clip is for power supply, connector with 2-pin socket is for slaved motor.
- SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 333mm ; Minimum Inst Size (shrink): 157mm; Maximum Inst Size: 490mm; Load: push force: 750 N pull force: 750 N.
- NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
- PACKAGE: 1* Okin refined motor. Easy to install.
| Size | JLDQ.12.157.333K |
|---|---|
| Color | Black |
| Shape | Rectangular |
| Pattern | Solid |
| Tilting | Yes |
| Set Name | Motor and Connector Set |
| Arm Style | Armless |
| Leg Style | Sled Base |
| Room Type | Living Room |
| Back Style | Solid Back |
| Brand Name | Okin |
| Item Depth | 6.18 inches |
| Model Name | JLDQ.12.157.333K |
| Seat Depth | 13.11 inches |
| Style Name | Contemporary |
| Unit Count | 1.0 Count |
| Fabric Type | Aluminum |
| Form Factor | Recliner |
| Item Weight | 2.2 Kilograms |
| Finish Types | Polished |
| Manufacturer | OKIN Refined Electric Technology Co.,Ltd |
| Model Number | JLDQ.12.157.333K |
| Fill Material | Foam |
| Material Type | Aluminum |
| Seat Material | Plastic |
| Is Customizable | No |
| Item Dimensions | 17.7 x 4 x 3 inches |
| Furniture Finish | Aluminum |
| Required Assembly | Yes |
| Additional Features | Reclining |
| Frame Material Type | Aluminum |
| Included Components | chair |
| Indoor Outdoor Usage | Indoor |
| Age Range Description | Adult |
| Surface Recommendation | Hard Floor |
| Manufacturer Part Number | JLDQ.12.157.333K |
| Reclining Position Count | 2 |
| Product Care Instructions | Install and maintain according to manufacturer's guidelines |
| Recommended Uses For Product | Relaxing |
| Maximum Weight Recommendation | 168.6 Pounds |
| Assembly Instructions Description | Remove old motor and install new motor |
