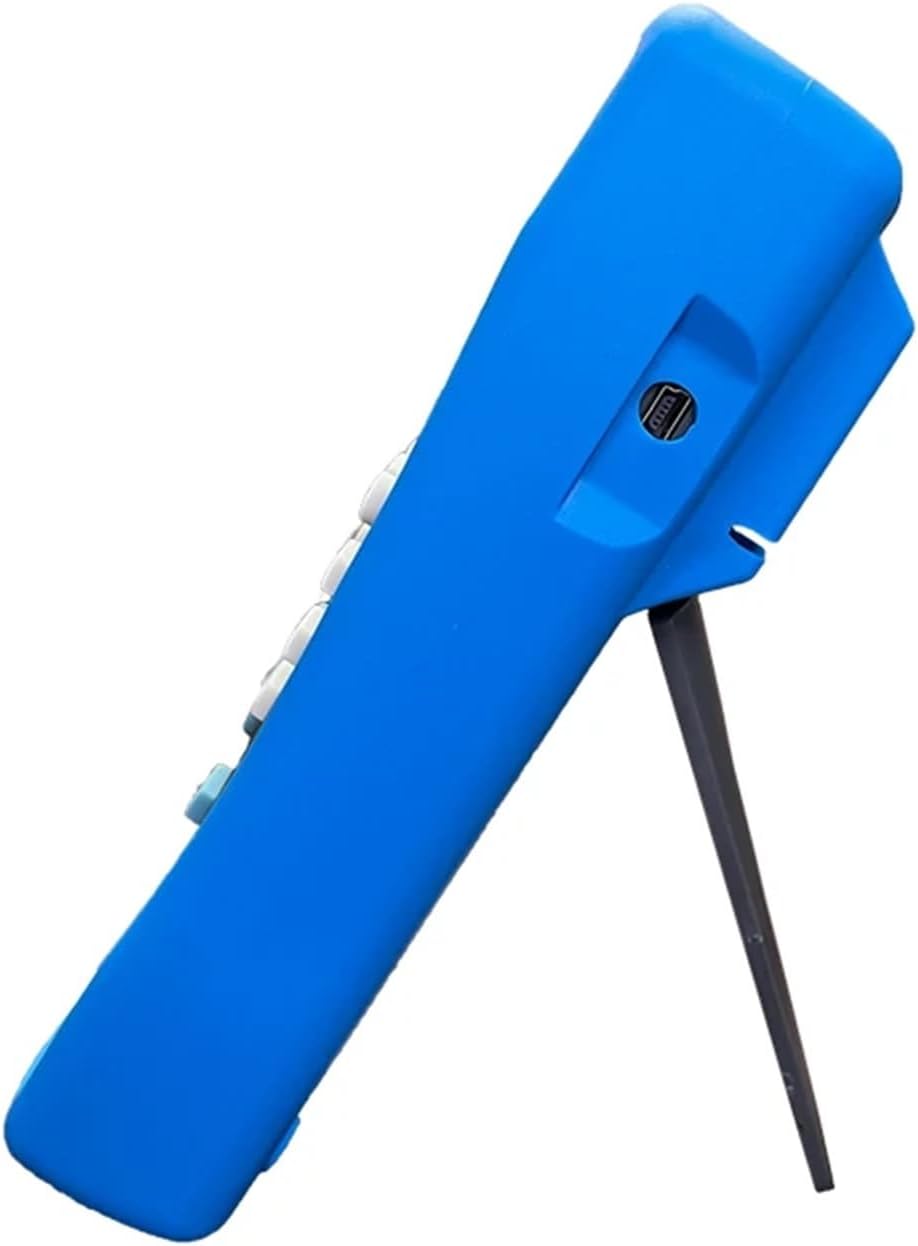

Meter Digital Bridge USB High Precision Capacitance Inductance Resistance Test for Electrical Testing(ET431)

ET43 SeriesHandheld Meter IntroductionProduct description:ET43 series Handheld Meterfeatures 2.8"TFT display screen, easy key operation and USB communication.Its high capacity lithium battery ensures .It can measurecomprehensive parameters,and supports for screening and deviation measurement, with continuously adjustable output frequency.The basic accuracyreaches 0.2%/0.3%;Inductance:0.000µH-2000H,Capacitance:0.000pF-20.000mF,Resistance:0.0001-20.000MET430:Test frequency: 100Hz-100kHZ, accuracy: 0.3%, 6 test frequency points; component access automatic identification function; 2 test level points, electrolytic capacitor function;ET431:Test frequency: 100Hz-10kHZ, accuracy: 0.2%, 4 test frequency points; component access automatic identification function; electrolytic capacitor function, DC resistance (DCR) function; 4 test level points, 4 and a half digits precision display ;ET432:Test frequency: 100Hz-100kHZ, accuracy: 0.2%, 6 test frequency points; component access automatic identification function; electrolytic capacitor function, DC resistance (DCR) function; 6 test level points, 4 and a half digits precision display ;ET433:Test frequency: 100Hz ~ 100kHZ; Accuracy: 0.2%, 4 and a half precision display; Test frequency: 1Hz continuous step adjustable; level 10mV ~ 1100mV, 1mV continuous step adjustable; component access automatic identification function; Electrolytic capacitor function, DC resistance (DCR) function;Product features:uMeasurable frequency up to 100k Hz,continuously adjustable at a step of 1 Hz.;uSpecial function:Automatic identification and measurement after components are connected;uInternal bias voltage output (0mV-500mV),1mV step, continuously adjustable;uDC Resistance (DCR) measurement;uElectrolytic capacitance measurement;uSupport for screening and deviation measurement ;uBasic measuring accuracy 0.2%;uadjustable measuring speed;u2.8"TFT display screen, a 4 1/2 digit display;uUSB communication interface;uPower supply by high capacity lithium battery;uSupport for SCPI protocol;uManual and automatic range;uOpen circuit and short circuit calibration;uMultiple testing ports;

• 1. High Precision Measurement: The Meter Digital Bridge features a high measuring accuracy of 0.2%/0.3%, allowing for precise and reliable measurements of inductance, capacitance, and resistance. With a wide measurement range from 0.000µH to 2000H for inductance, 0.000pF to 20.000mF for capacitance, and 0.0001-20.000M for resistance, it is suitable for various electronic components and circuits.
• 2. Versatile Functionality: This handheld Meter offers comprehensive functions to meet your testing needs. It supports screening and deviation measurement, providing valuable data for component analysis. The device also allows for continuously adjustable output frequency, enabling versatile frequency testing from 100Hz to 100kHz. Moreover, the automatic identification function ensures easy and efficient component testing.
• 3. Convenient Operation and Display: With a user-friendly 2.8" TFT display screen, this Meter provides clear and intuitive measurement results. The easy key operation makes it simple to navigate through different and functions. Additionally, the device supports USB communication, allowing for convenient data transfer and analysis on your computer.
• 4. Portable and Long-lasting: Designed with a high capacity lithium battery, this Meter ensures long-lasting performance during your measurement tasks. Its portable and compact design makes it easy to carry and use in various environments, whether in the lab or on-site. You can rely on this Meter to deliver accurate measurements wherever you go.
• 5. Professional Features and Calibration: The Meter Digital Bridge offers professional features to enhance your testing experience. It supports SCPI protocol, providing compatibility with other instruments and systems. The device allows for manual and automatic range selection, ensuring flexibility in different measurement scenarios. It also includes open circuit and short circuit calibration functions, guaranteeing accurate and reliable measurements every time. With multiple testing ports, you can efficiently connect and test various components without hassle.
