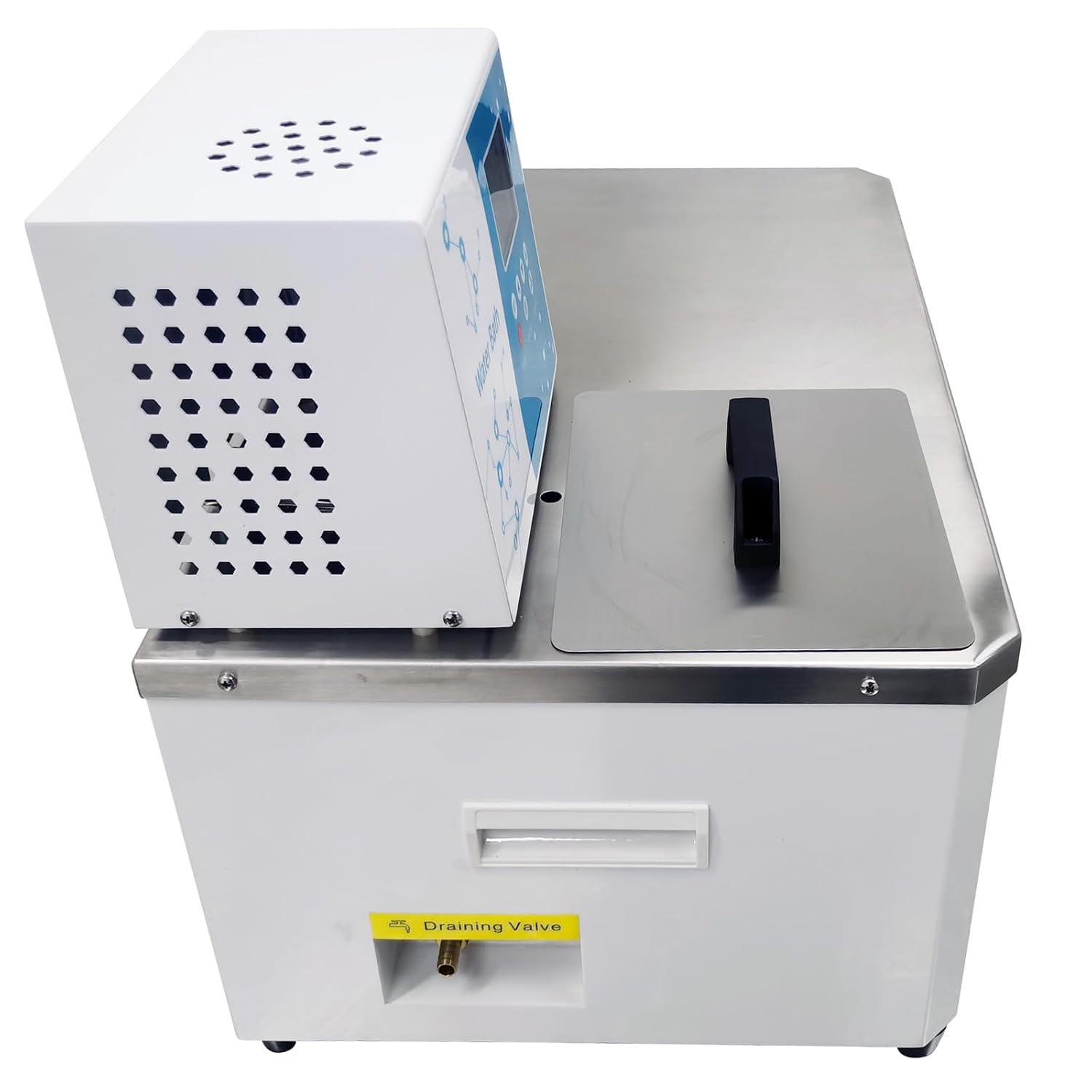

INTSUPERMAI Laboratory Chiller Circulator 6L Chiller -5℃-100℃ Refrigerated Circulating Water Liquid Bath Cooling Circulator Pump Chiller Water Bath Recirculating Lab Recirculating Chiller 110V

Parameters: Voltage: 110V Power: 1500W Volume: 6L Temperature fluctuation: ±0.03℃(Water or pure ethanol) Temperature range: -5℃-100℃ Resolution ratio: 0.01 ℃ Opening Size: 145×145×150mm (long and wide and deep) pumping flow: 8 L/min Pump circulation mode: output loop Package content One set of 110V 1500W Laboratory Chiller Circulator 6L -5℃-100℃ Chiller Lab Low Temperature Cooling Liquid Circulator Pump Chiller Precautions for Use: 1. Before use, it must be confirmed that the liquid medium has been added to the tank body, and the distance between the liquid level of the medium and the working table should be less than 3 cm, otherwise the heater may dry burn and damage when electrified. 2. The selection of liquid media in the tank shall conform to the following principles: ⑴When the working temperature is lower than 5 ℃, absolute ethyl alcohol or ethylene glycol is used for the liquid medium. ⑵When the working temperature is 5 ℃ ~95 ℃, water is generally used in liquid medium. ⑶When the working temperature is between 95 and 100 ℃ , a 15% aqueous glycerol solution can be used for the liquid medium. Note: The operating temperature here is the temperature to which the liquid medium in the tank is to be reached; 3. Power supply: 110V, the power of the power supply shall be greater than the total power of the instrument, and the power supply must have good "ground" device； 4. Because the refrigeration compressor works continuously (refrigerator, air conditioning is intermittent), it needs to be shut down for a day after a long period of continuous work (such as about 5 days). 5. The instrument should be placed in a dry and ventilated place, and there are no obstacles in the 300mm around the instrument.

• 6L Capacity/-5℃-100℃ Temperature : This low temperature cooling liquid circulator adopts a 6L working tank (L×W×H: 5.71×5.71×5.91in/145×145×150mm), moderate size, more practical. High quality compressor, high refrigeration efficiency, fast speed, low noise.Temperature range: -5℃-100℃; Temperature fluctuation: ±0.03 ℃(Water or pure ethanol); Pumping flow: 8 L/min
• Circulation System: This laboratory chiller circulator can be used in conjunction with a viscometer. Equipped with reliable Interna and External circulation systems: Internal circulation could make the bath inner liquid temperature be more uniform and stability. External circulation could guide the inner bath constant temperature liquid outflow, and establish the second constant temperature field
• Efficient Controller: This water bath adopts PID automatic control system, digital display temperature, whic is simple operation and it is easy to use, and more precise temperature control. Intelligent digital system can correct the deviation of the temperature measurement, which make the digital resolution 0.1℃. It also has alarm function when the temperature reach the upper and lower limitation
• Silent Circulating Pump: This thermostatic bath is equipped with a cooling fan, It can effectively reduce the heat generated when the machine is running, and it can make the machine run more stable, and prolong the service life of the machine, which is more stable. Circulating water pump, steady and quiet water flow
• Wide Application: This low temperature cooling liquid circulator is suitable for Internal circulation and External circulation, it could be used for all kinds of experiments. It is widely used in biological engineering, food, chemical industry, metallurgy, chemical analysis, oil and other fields
