GwliUni 2Pcs 0.5m MPO Fiber Optic Patch Cord, OM4 Multi-Mode Cable Jumper Plug, Female to Female, 12 Core 6 Channel Type B, PC end face, LSZH 3.0mm, Compatible with 8 Core 4 Channel MPO

【Product Description】 -All the data were tested with high-precision instruments -MPO jumpers are widely used in the environment where high-density integrated optical fiber lines are needed in the wiring process, and the internal and external connection applications of FTTX, 40/100GSFP,and other transceiver modules or devices. 【Product Detail】 Connector Type: MPO Female to MPO Female Fiber type: 3.0mm OM4 Multi mode End Face Type: PC Core Type: 12 Core 6 Channels Compatible with 8 Core 4 Channel Insertion Loss:≤ 0.6db Return Loss:≥20db Operating temperature: -20~60℃ Cable Length:0.5m/1.64 feet Cacket Material：LZSH Packing Quantity:2 PCS

• 【Main Parameters】0.5m(1.64 feet) MPO to MPO multi-mode OM4 3.0mm fiber patch cord, female to female connector; utilizes type B wiring structure, PC polished end face
• 【12 Cores 6 channel】The MPO cable supports 12 cores fiber 6 channel transmission, which is compatible with 8 core fiber 4 channel transmission, achieving high-performance information transmission of 40G-100G.

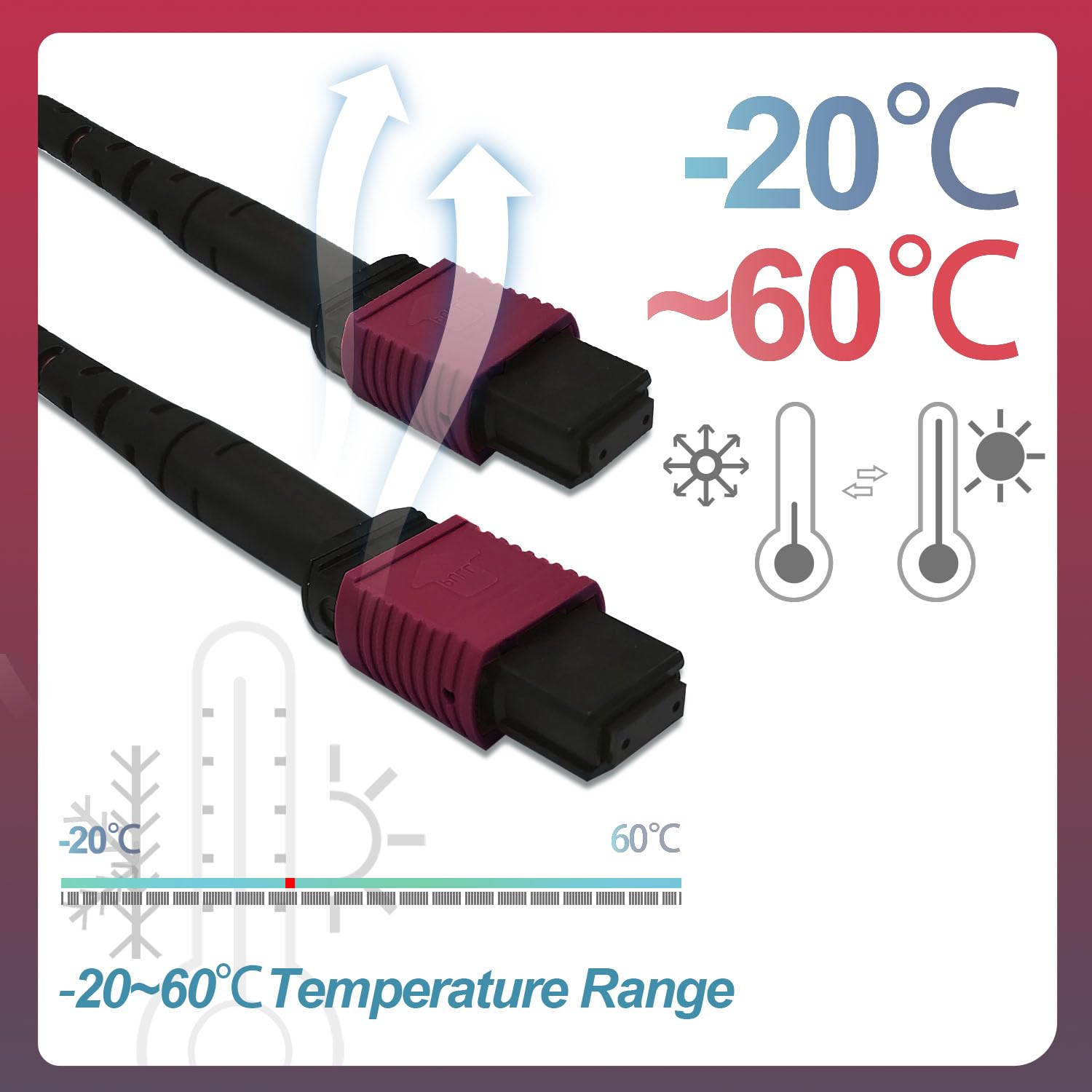

• 【Stable Signal transmission】The signal is transmitted by high-quality connectors (low insertion loss≤0.6dB, high return loss ≥20dB). And the connectors can be pluged for more than >1000+ time, supports operating -20℃to 60℃ temperature
• 【Good Fiber Protection】MPO fiber jumpers adopt environmentally friendly LSZH outer sheath material to effectively prevent fiber bending or breaking.It also has anti-corrosion, flame-retardant, and wear-resistant characteristics.
• 【Widely applicable】The MPO is widely deployed in high end data centers for 40G-100G data transmission in fiber communication systems, like QSFP+ and QSFP28 optical modules
