CNC Steel Tactical Gear Sets 12:1/13:1/16:1/18:1 for V2 V3 AEG M4 AK Airsoft Gearbox (GEAR RATIO-13:1)

At present, the gear ratios we mainly produce : 18:1;16:1;13:1;12:1, dual sector gear 9:1, 6.5:1 Our gears are precision CNC machined using high-precision equipment. The bevel gears are made of MIM, and the central shaft gear, sector gear and spur gear are made of 40Cr steel through CNC turning, milling and hobbing processes, and then hardened to HRC42-50 by a heat treatment factory to ensure durability during high-speed operation. By continuously improving gear parameters over a long period of time, we have made the gears run smoother and produce less noise. (We are also experimenting with gears made of 20CrMoTi and 30CrMnSiNi materials to further improve the maximum torque and toughness)The gear shaft and gear plate adopt an interference fit of 0.05mm, and are tightly connected through press fit. In actual production, only by strictly controlling tolerances can the quality, stability and reliability of gear connections be guaranteed. Too large or too small will affect the service life of the gear in high-speed operation and seriously cause the gear shaft to separate from the gear.For large orders, we offer additional discounts and first-class service. Contact us today for cost-effective products!One Gear Set Contains: Sector gear x 1pcsSpur gear x 1pcsBevel gear x 1pcs

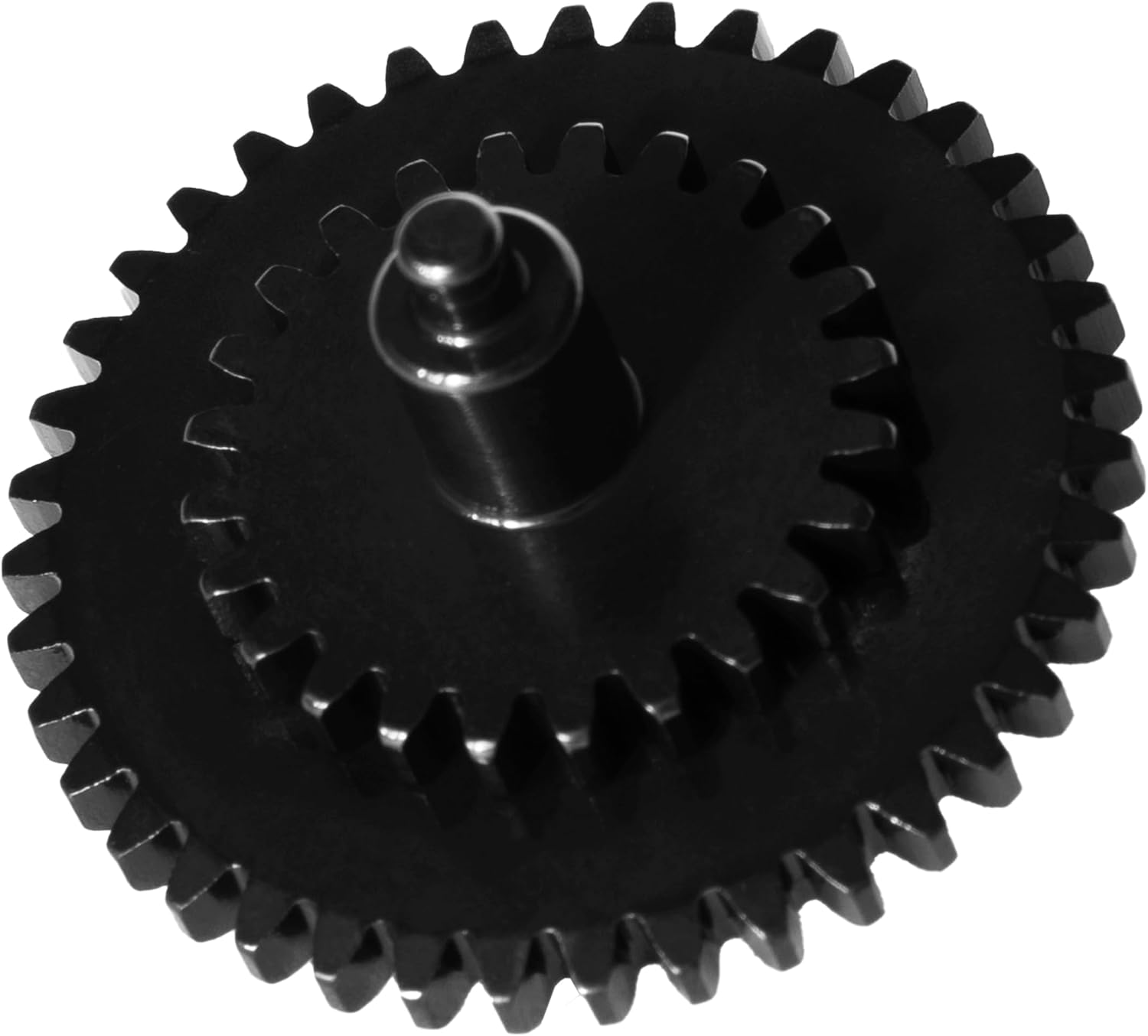

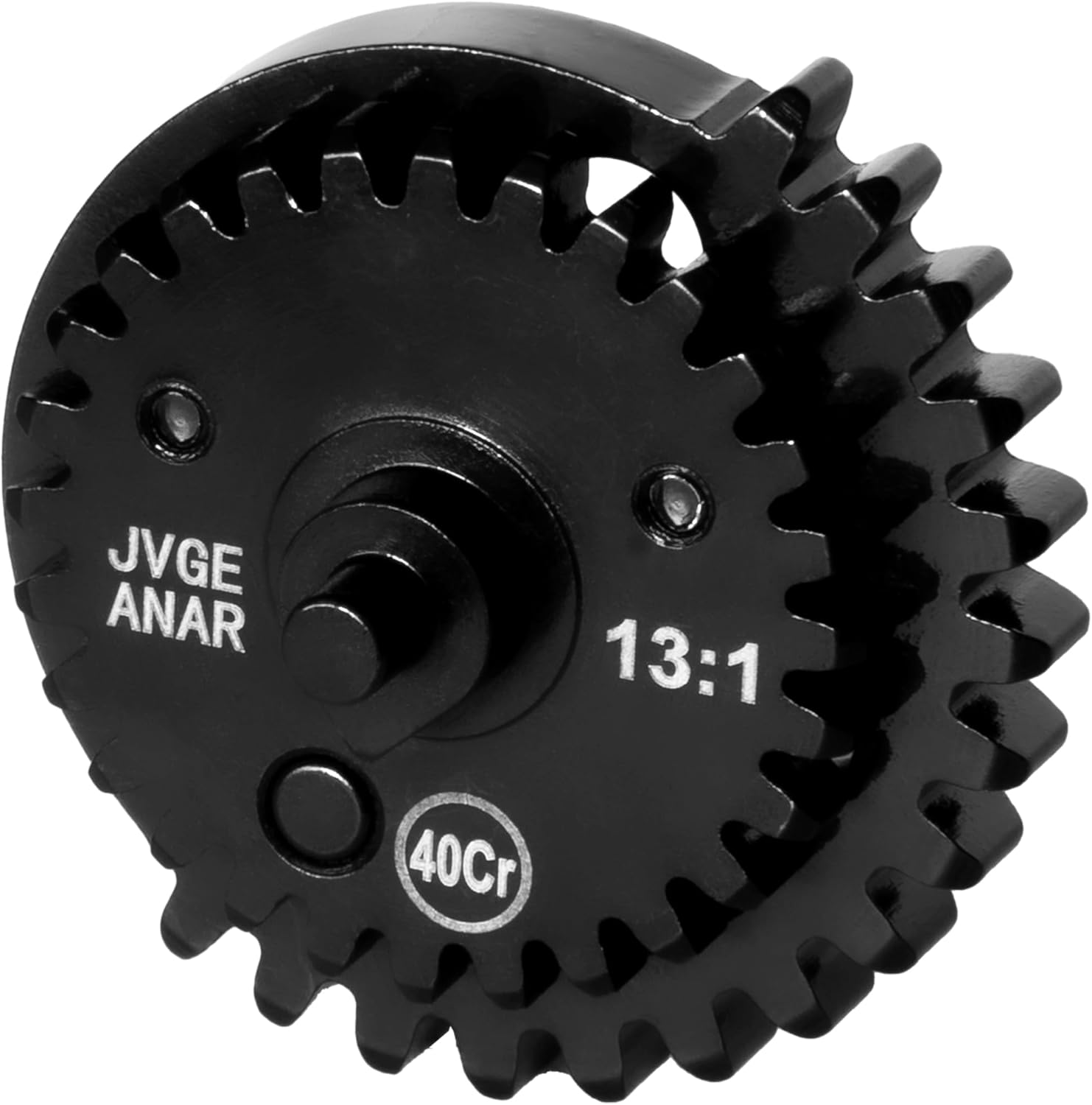

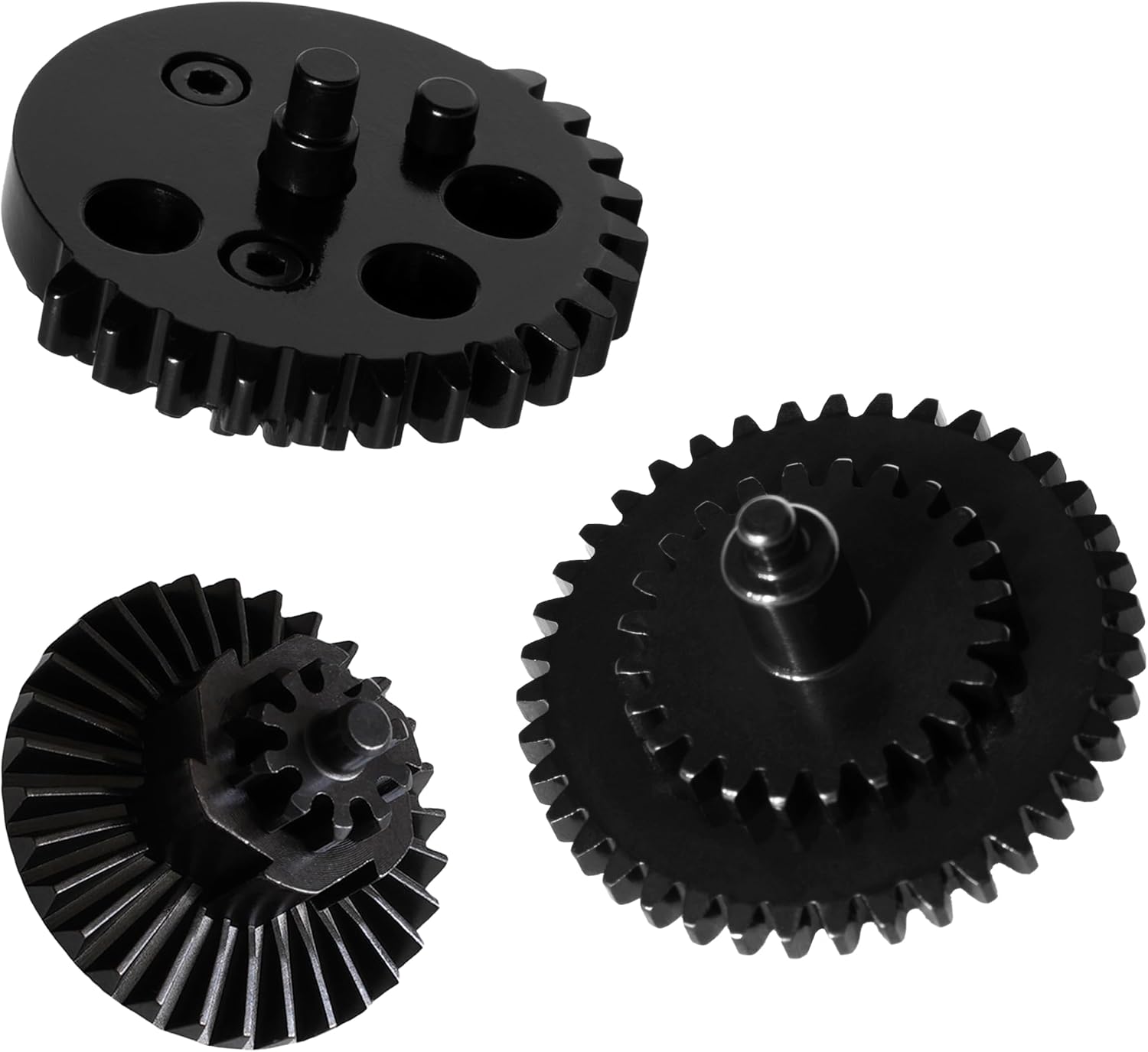

• 1.Sector Gear & Spur Gear Material: 40Cr Steel, (except bevel gear, pin) manufactured by CNC Machined
• 2.Bevel Gear manufactured by MIM, Center Shaft Gear manufactured by CNC Machined, Material: 40Cr Steel
• 3.Drive Ratio: 18:1;16:1;13:1;12:1;
• 4.Rockwell Hardness: HRC42-50 (Pin hardness HRC55-60,Bevel Gear HRC42-47)
• 5.Recommended Battery Voltage: 11.1V
• 6.Suitable for version 2 or 3 airsoft gearbox
• 7.CNC Machining / Turning / Hobbing gear.High precision.High strength
• 8.Tooth shape optimization, Chamfering optimization - Reduced friction, Reduced noise
