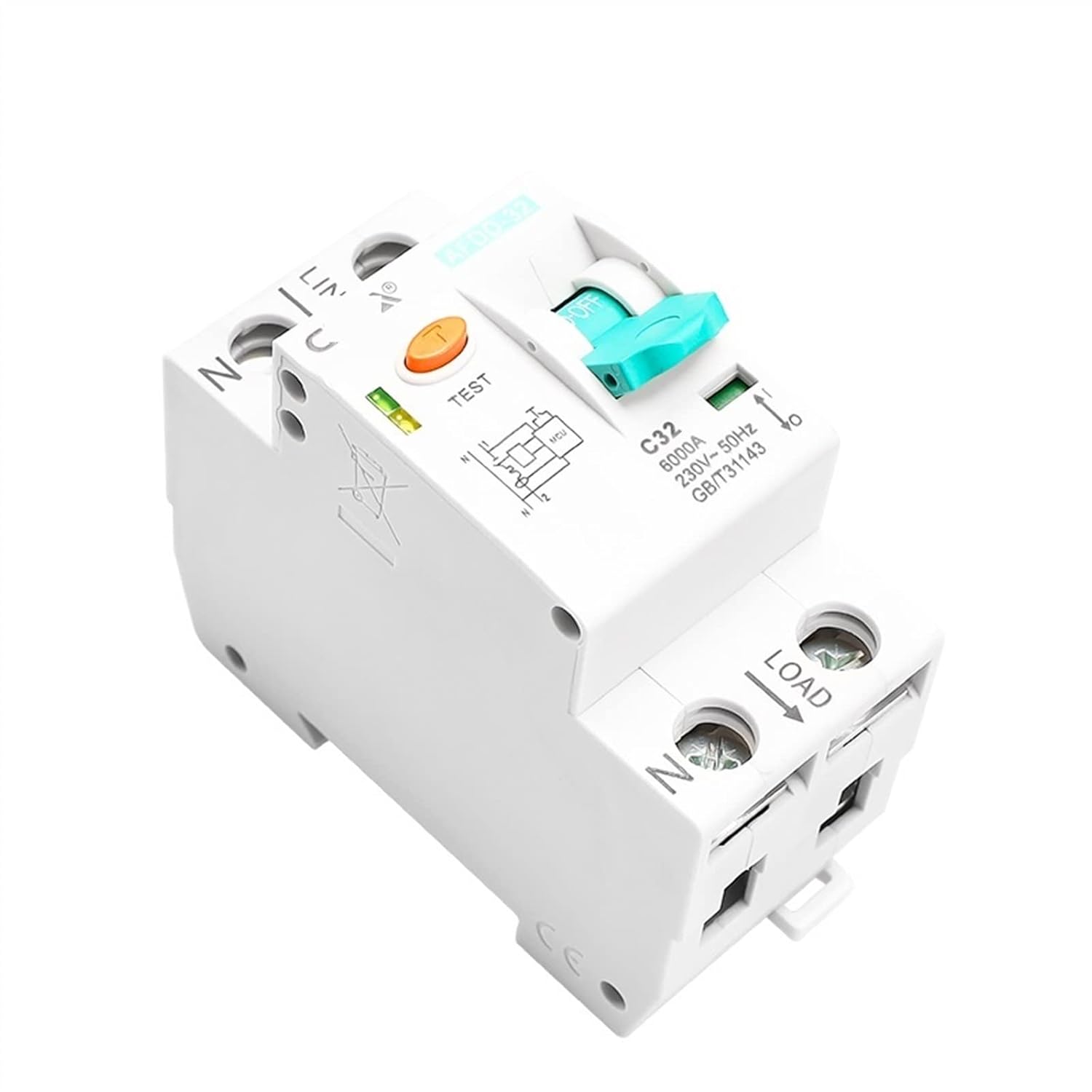

AFDD-32 Arc Fault Detecion Device Circuit Breaker Interrupte Overload Short Circuit Protection AFDD+MCB 32A 6KA 1P+N 1Pcs (Size : B Curve, Color : 25A)

Arc Fault Circuit BreakersAFDD-32 Arc Fault Detecion Device Circuit Breaker Interrupte Overload Short Circuit Protection AFDD+MCB 32A 6KA 1P+N 1PcsGeneralAFDD2-32 incorporating MCB and arc fault detection , provides protection against short circuit, overload and arc fault. The incorporated arc fault detects and identify arc fault, which enables the product effectively disconnect the protected circuit against arc fault. Applicable to AC circuit with rated current up to 32A, is widely used for household and similar installations. The arc fault detection of AFDD can effectively detect and identify arc faults happened to different circuits connected in series, in parallel and to earth resulted from disabled insulation layer due to aging, damaging or high humidity. The product trips and disconnects a protected circuit upon detection of arc faults. 1). Rated voltage (Ue) : AC230V 2). Rated frequency: 50HZ20%3). Rated insulation voltage (Ui) : 400V 4). Rated impulse withstand voltage(Uimp): 4KV 5). Rated current (In) : 6A, 10A, 16A, 20A, 25A, 32 A6). Magnetic tripping type: B-Curve, C-Curve7). Rated service short circuit capacity (lcs) : 6KA 8). Rated short circuit capacity (lcn) : 6KA Test Button Indicator Status:Normal -Green Indicating LightFault-Yellow Indicating LightInstruction: When installing this product, disconnect the upper stream power supply, and then connect the LINE and LOAD as per following steps: 1. Turn on upper stream power supply, switch on the AFDD-32, the green indicating light flashes at time interval 0.6s and the product starts normal service.2. Switch on the product, connect load, press test button, the product trips, the green indicating light turns off and the yellow indicating light flashes once and goes off, which means product is at normal service.3. During normal operation of a load, if product trips both green and yellow indicating light turns off,
