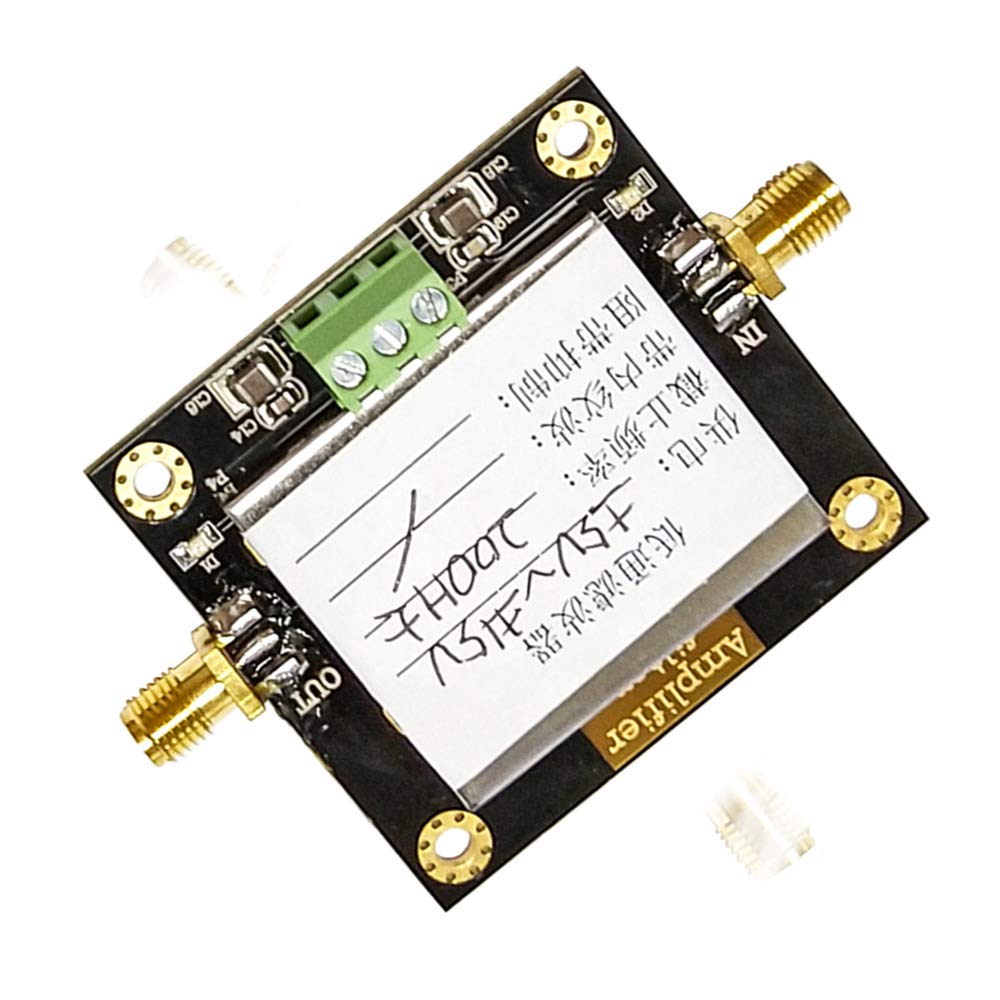

4th Order Filter Module Band Pass Custom Ic Filter Circuit Frequency Band 1MHz Signal Filtering

Specification: Module model: Fourth-order custom filter Module type: custom analog filter Supply voltage: ±5V-±15V Module current: 12mA (MAX) Filter type: high pass, low pass, band pass Low-pass cutoff frequency range: 1MHz (MAX), (due to the operational amplifier bandwidth limitation, the highest frequency is 2MHz) Bandpass center frequency range: Starting frequency: greater than 10MH Cutoff frequency: less than 1MHz (Center frequency = start frequency + cutoff frequency)/2 module is mainly used for broadband bandpass, that is, the start frequency and cutoff frequency are quite different) Input signal formation: single-ended Input signal voltage range: less than positive and negative power supply Input frequency range: DC-1MHz Module gain range: none Input and output signal characteristics: DC input and output (low-pass output with DC component, please add a DC block when connecting to RF equipment, or directly use an oscilloscope to measure) Module input and output interface: SMA (24-hour salt spray plating anti-oxidation) Module protection: None (no reverse connection protection, unlimited current protection) Custom parameters: Yes Module features: multifunctional filter, universal adjustable filter Module application: power system, sensor signal processing, transmitter and receiver, signal generator Module size specification: 50x47x12mm Module weight: 13.4g Module working temperature: 0-75℃ (civilian grade) Packing: 1*Fourth Order Filter

• Module type: custom analog filter
• Supply voltage: ±5V-±15V
• Module current: 12mA (MAX)
• Starting frequency: greater than 10MH
• Cutoff frequency: less than 1MHz
