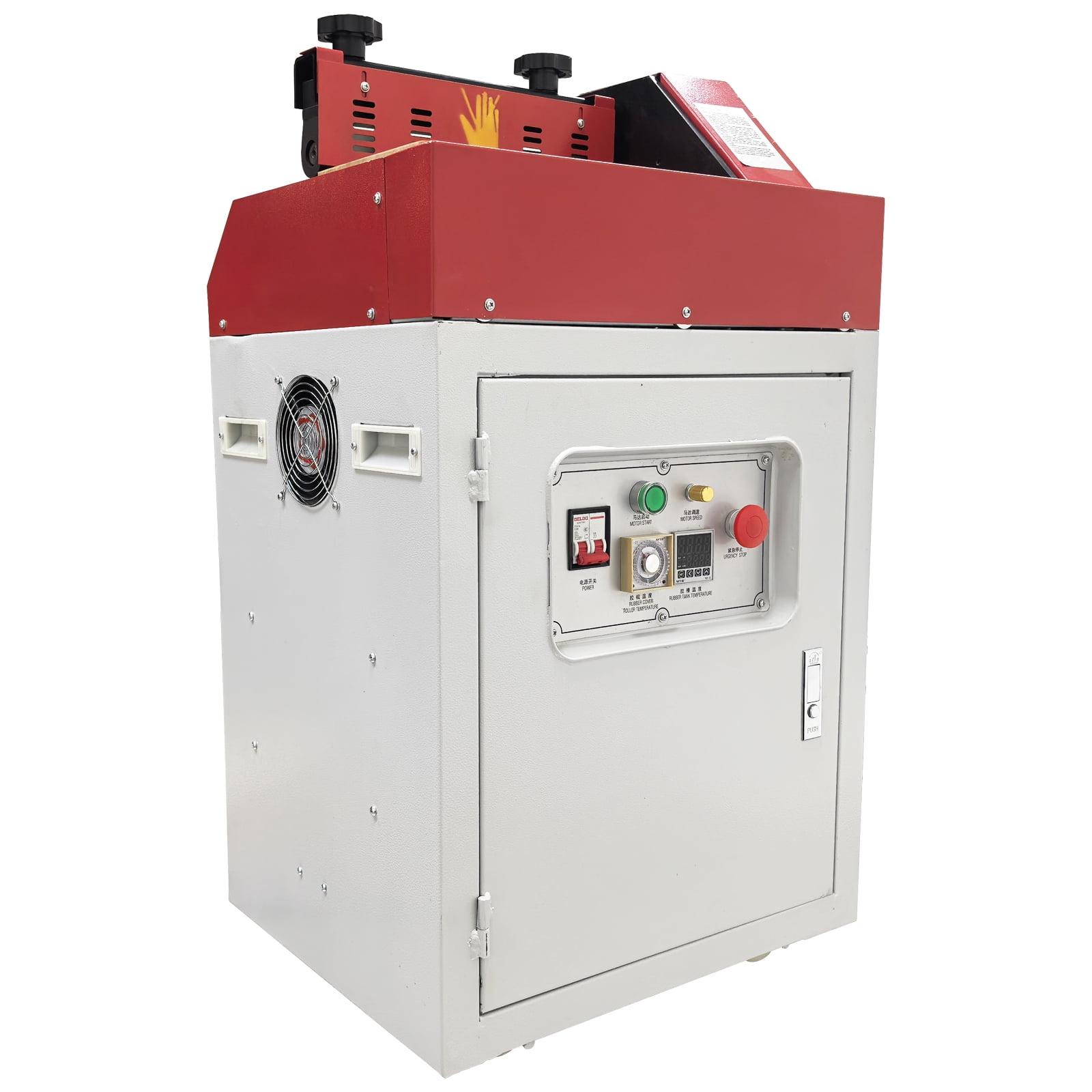

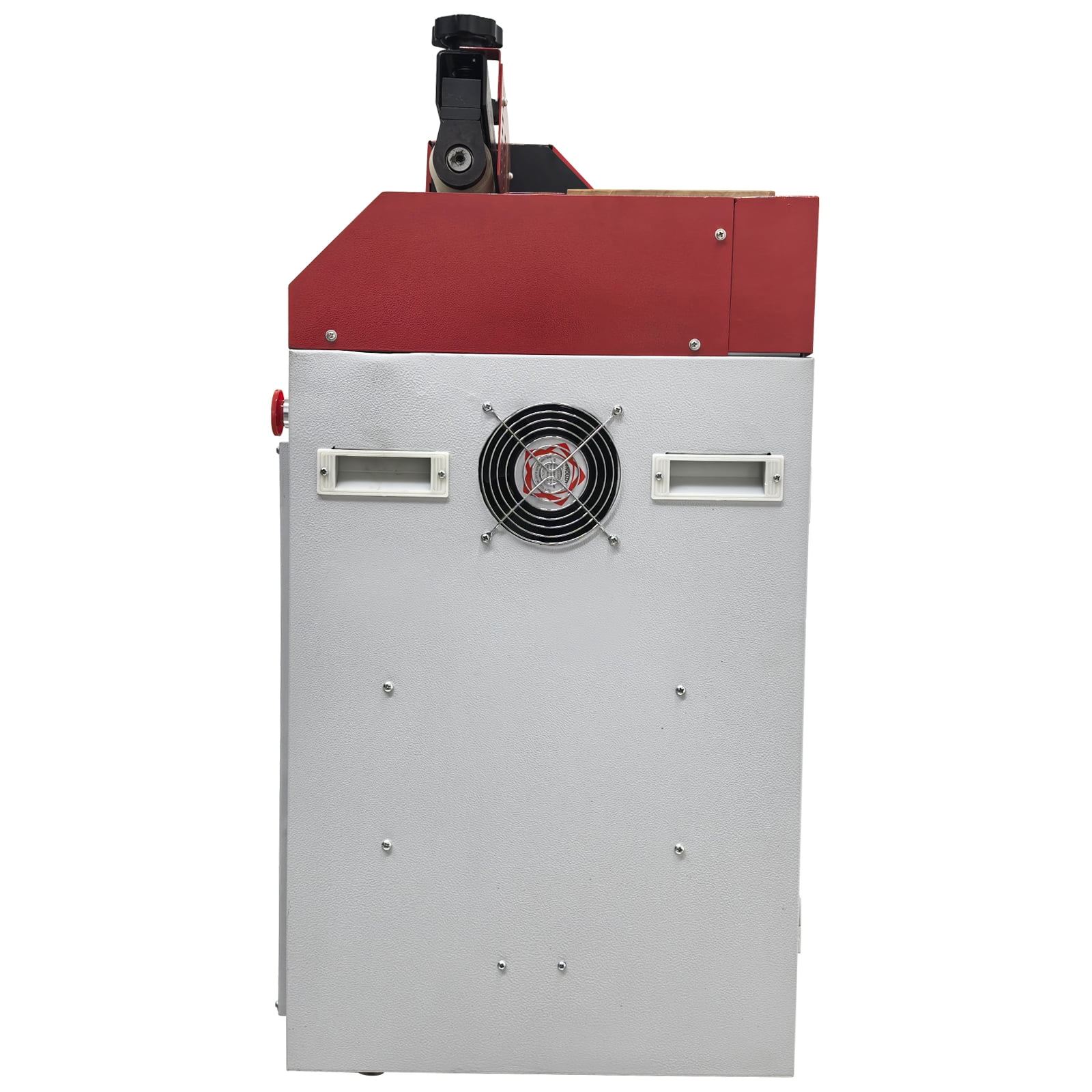

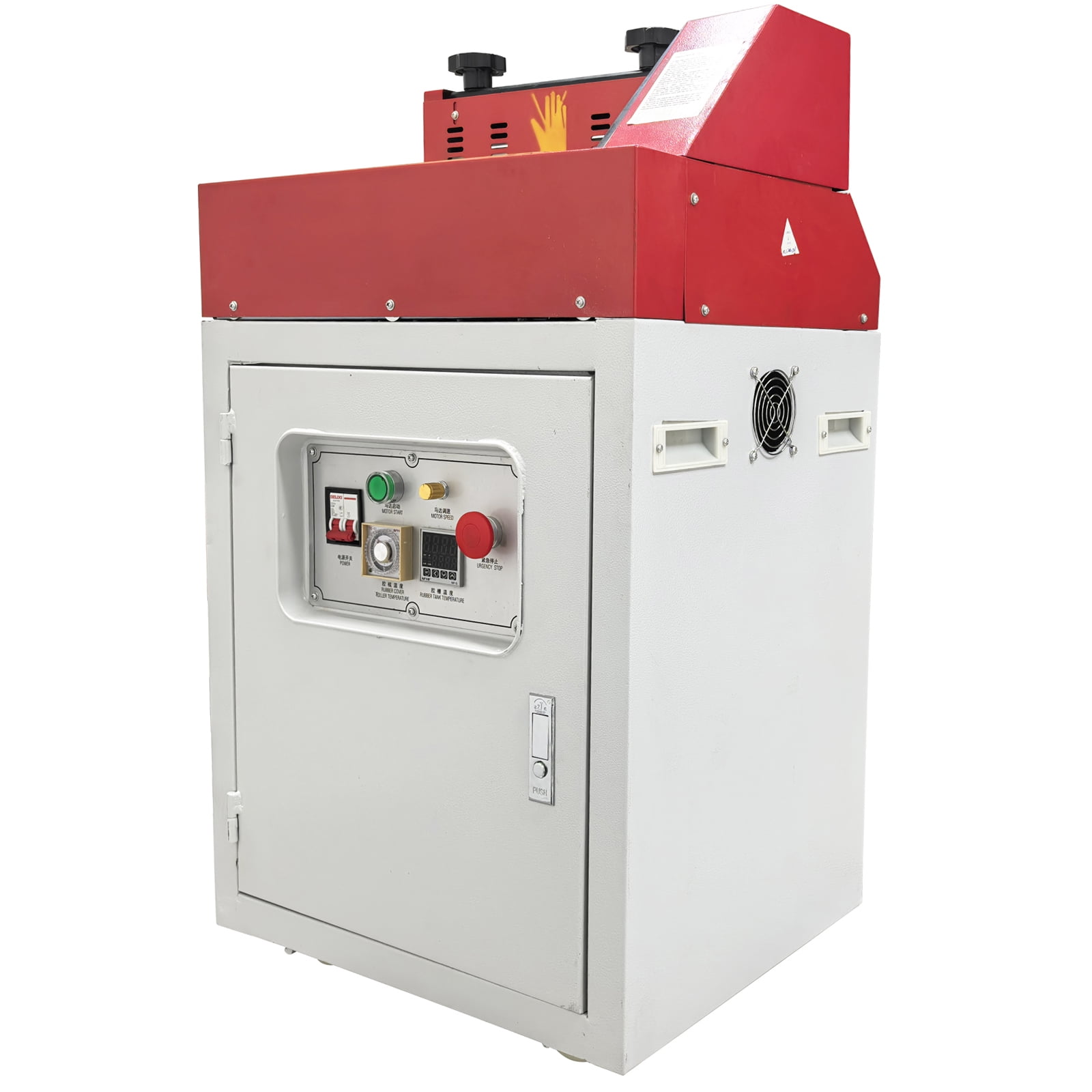

220V Hot Melt Glue Applicator 11.8IN Stand Type Hot Cementing Machine Without Plug

<p>Introduction:<br>The machine is suitable for adhesive coating and bonding of flat surfaces of shoes, leather goods, stationery, leather luggage, sports equipment, cardboard boxes and other items with a thickness of 0.5mm or above. The soft roller can move up and down, is adjustable in pressure, and can conduct adhesive coating of uneven, soft or hard materials or materials with low front sides and high rear sides. The temperature of the adhesive tank can be adjusted according to the characteristics of the hot melt adhesive, and can effectively prevent carbonization of the hot melt adhesive. The machine adopts speed regulation control, and the adhesive coating speed can be adjusted as needed.</p> <p>Product Parameters<br>Power Supply: 220V<br>Electric Heating Power: 3.3KW<br>Motor Power: 180W<br>Adhesive Coating Width: 11.8in/30cm<br>Product dimensions: 19.88x16.93x36.22in/50.5x43x92cm<br>Net weight: 139LB/63KG</p> <p>Operation Method<br>1. Place the machine on the flat ground, and ensure there is no shaking.<br>2. Connect the power supply, turn on the power switch, set the temperature of the adhesive tank (generally at 150-170˚C) and the temperature of the large shaft (knurled shaft) (generally at 100-120˚C), and adjust other settings as needed.<br>3. Open the cover plate of the adhesive tank and put the hot melt adhesive into it.<br>4. When the temperature of the adhesive tank reaches 120˚C, press the motor start switch to enable the motor to rotate, and simultaneously reduce the temperature of the large shaft to be within the range of 60˚C and 100˚C.<br>5. Adjust the thickness of the adhesive according to the materials and requirements. Rotate the adhesive adjusting handwheel clockwise to thicken the adhesive, and rotate the adhesive adjusting handwheel counterclockwise to thin the adhesive.<br>6. Adjust the gap between the soft roller and the large shaft (knurled shaft) according to the thickness of the material to be glued. Generally, it is appropriate for the material to automatically pass through the gap when the material is placed on the large shaft (knurled shaft).<br>7. After everything is adjusted to be normal, mass production can be conducted.<br>8. In case of emergency, press the inching switch, and the motor will automatically rotate reversely, and the material can automatically exit.</p> <p>Item Included (120127): 1 x Stand Type Hot Cementing Machine 220V</p>

• The hot melt adhesive gluing machine has strong adhesion and high bonding strength, and can quickly bond the material after gluing.
• This machine adopts an enlarged soft rubber roller for more uniform and sufficient gluing, with a wider range of applications. The soft roller can move up and down and adjust the pressure, and can be used for gluing materials that are uneven, soft, hard, and uneven in front and back.
• Fast heating, high sol efficiency, and can quickly enter the working state.
• Equipped with a digital temperature controller, it can accurately control the temperature of the rubber roller and adapt to different types of hot melt adhesives.
• The speed can be adjusted by turning the knob to adjust the speed of the rubber roller, which can be flexibly adjusted according to the material and process.
