20 x 28 pneumatic up sliding dual platen heat press machine with infrared positioning

20 x 28'' Hot Selling Heat Press Machines<br>Voltage(V):110V/60HZ<br>Power(kW):4.0kW<br>Temperature(℃):0-299<br>Delaying Time(S):1-999<br>G.W.(LB):306.5<br>Package Size(''):65.0'' x 33.5'' x 31.5''<br>Accept Thickness:Max. 2.36'' Thick Items<br>Range of Application:Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics<br>Pure Cotton Time:15s-25s<br>Polyester Time:40s<br>Chemical Fiber Time:10s-40s<br>Pearl Board Time:60s-100s<br>Metal Pendant Time:60s<br>Mousepad Time:50s<br>Vitrolite Time:180s<br>Key Ring Pendant Time: 100s<br>Ceramics Time:180s<br>Heat Plate Size:20'' x 28'' (50 x 70cm)<br><br>Material:Temperature<br>Pure cotton:356℉-428℉ (180℃-220℃)<br>Polyester:356℉ (180℃)<br>Chemical fiber:302℉-356℉ (150℃-180℃)<br>Pearl board:356℉ (180℃)<br>Metal pendant :356℉ (180℃)<br>Mousepad:374℉ (190℃)<br>Vitrolite:392℉ (200℃)<br>Ceramics :356℉-428℉ (180℃-220℃)<br><br>Basic information<br>Product Type:Single Box Product<br>Origin:China<br>Color:White+Blue<br>Material:Aluminium<br><br>Product size<br>Assembly Length (inches):44.49<br>Assembly Width (inches):37.80<br>Assembly Height (inches):57.09<br>Product Weight (lbs):363.83

• • Product features:
    Pneumatic heat press transfer machine makes machine more convenient for printing;
    T-shirt printing machine is more accurate for small items printing;
    Heat press machine powered by an air compressor ( not included);
    Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes
    Heat press machine with base frame for much stable printing and easy movement with the brake caster
• • 20" x 28" Up-sliding Heat Press Machine Pneumatic Heat Press Machine
  1. Heat press machine is full digital integrated display control;
  2. High accuracy of signal indication when press process is completed;
  3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
  4. Heat press machine pressure can be adjusted up to 0.8Mpa, It adopts connected track which is stable and convenient for sliding, with high efficiency;
  5. Special high temperature cloth for hot stamping machine covered
  6. Lower plate covered with silicon mat and sponge to heat even heating pressure
  7. Heat press machine is automation print once backside inductive screw touched
  8. Left and right side bearings parallelly move the heat press machine
  9. General pressure for 0.4Mpa-0.6Mpa heat printing

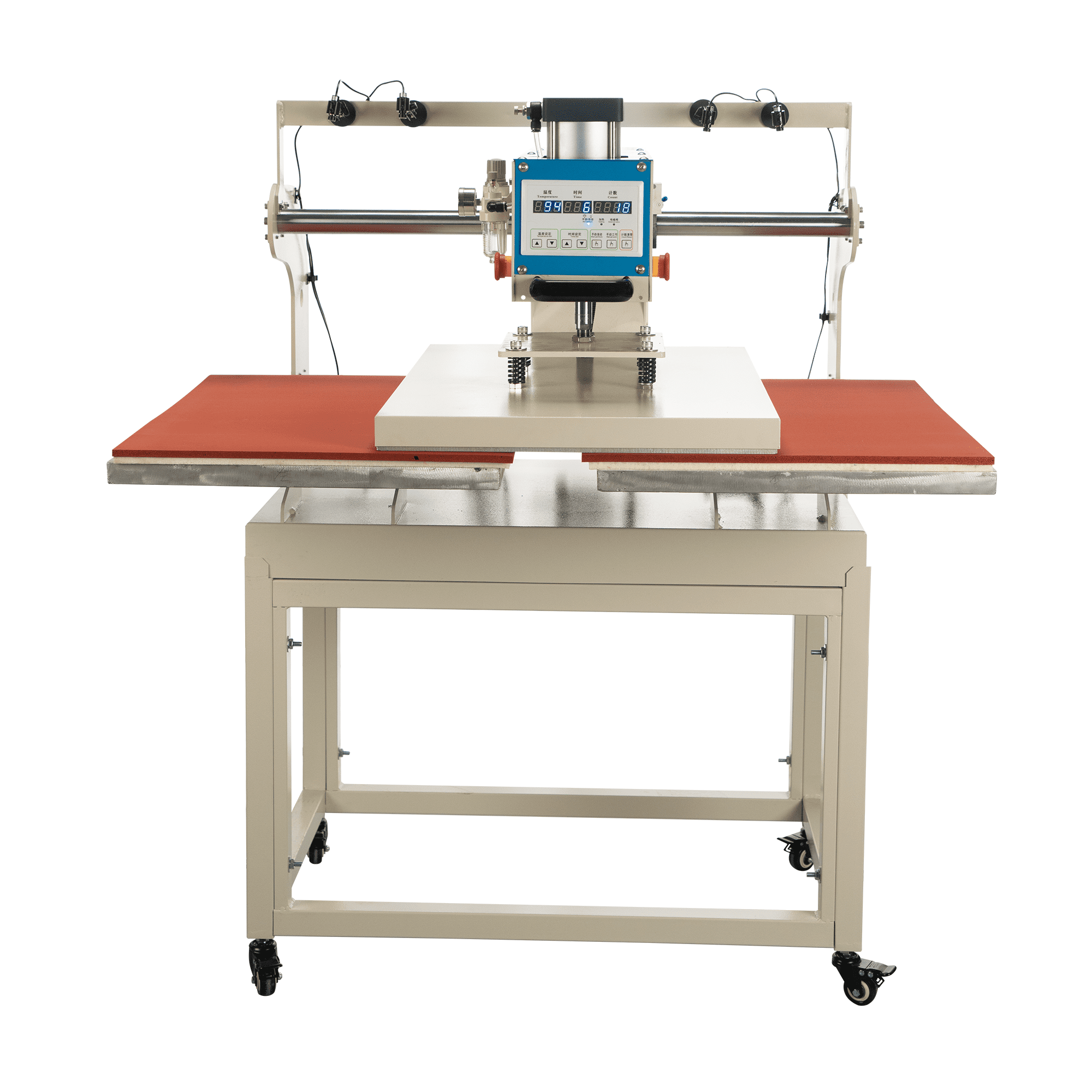

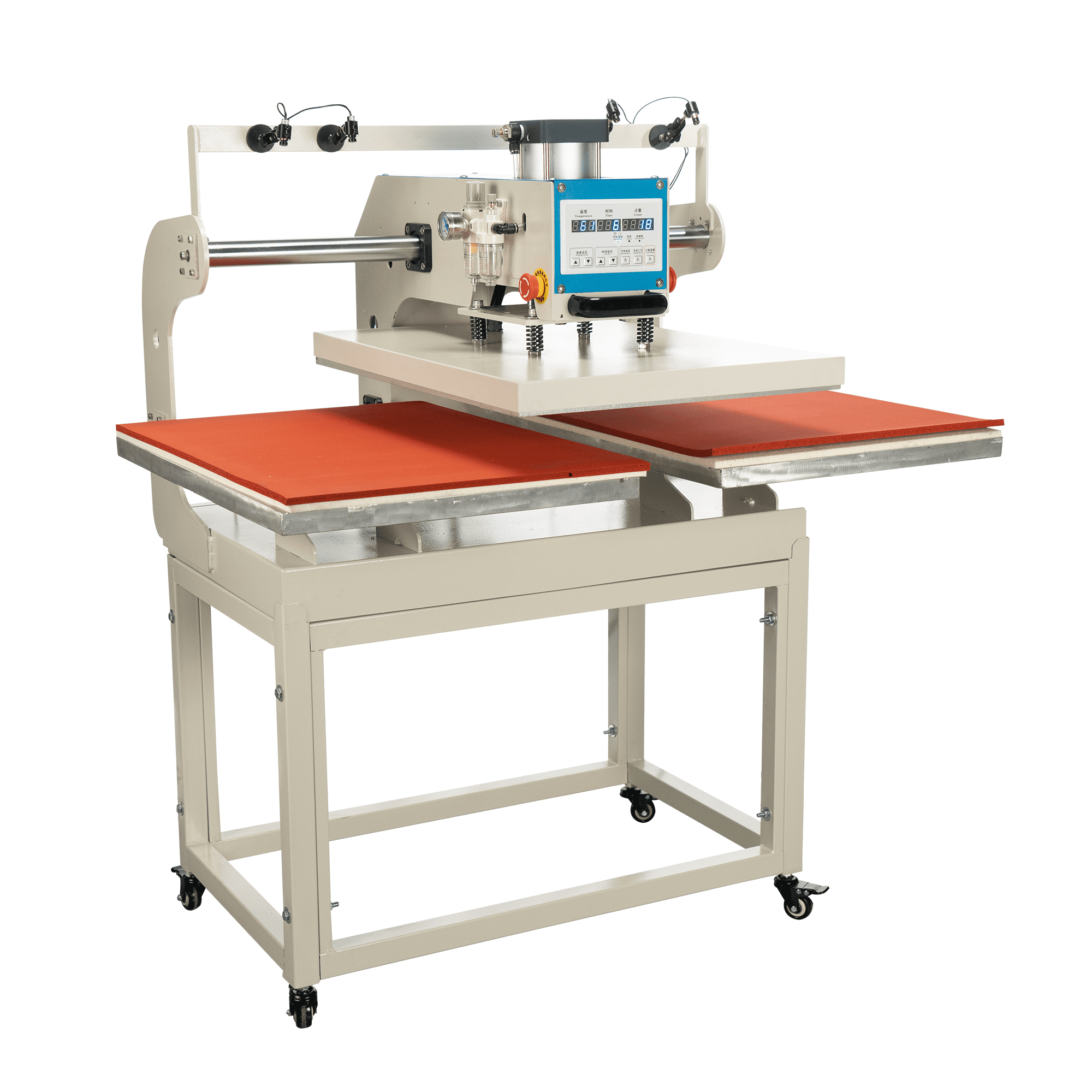

• • Double Station Heat Press Machine
  1. Pneumatic heat press transfer machine makes machine more convenient for printing;
  2. T-shirt printing machine is more accurate for small items printing;
  3. Heat press machine powered by an air compressor ( not included);
  4. Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes
  5. Heat press machine with base frame for much stable printing and easy movement with the brake caster

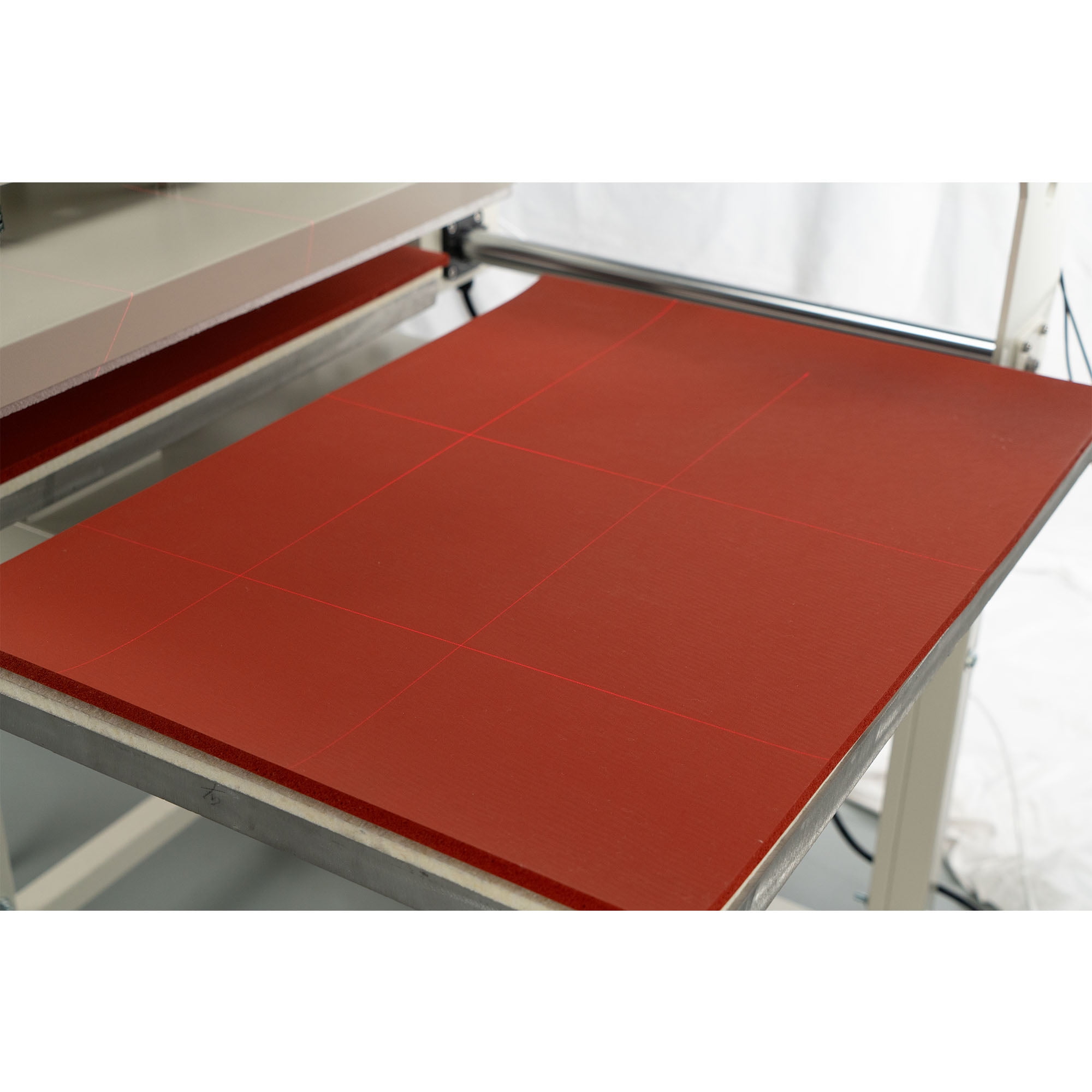

• • Laser positioning
  4pcs Laser positioning

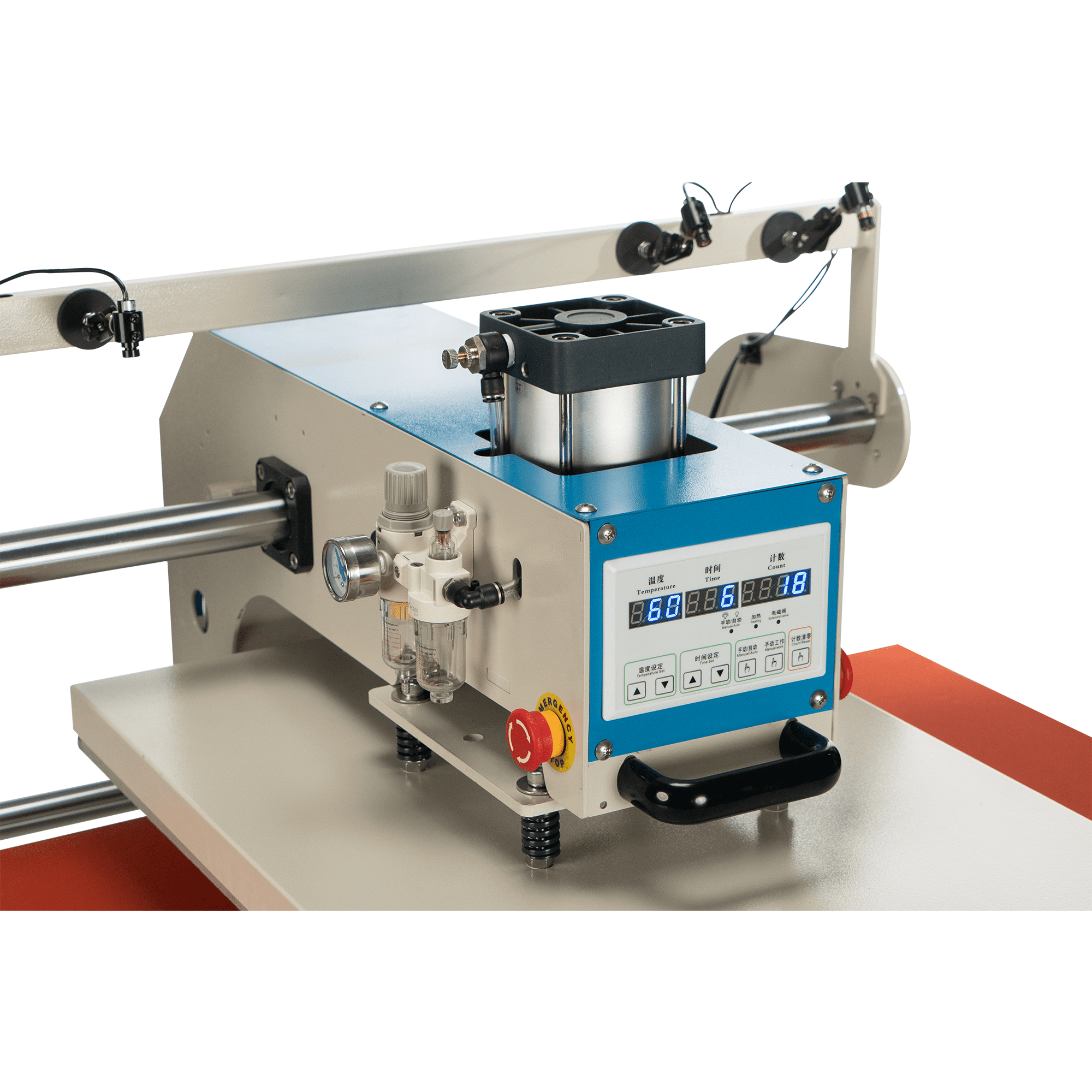

• • Big LCD Display Controlled, with Temperature, Time and Count Set
  Can save the labor and time cost with automatic counting.
• • Emergency Stop Button for Urgent Case Stop If Needed
  Pressure adjusting knob for easy adjustment of different pressure
  Right bottle for lubricate the air cylinder
• • Remarks:
  Items numbered 1，5, 6，7，and 8 are additional accessories intended for replacement. Please ensure that they stored or maintained appropriately.
