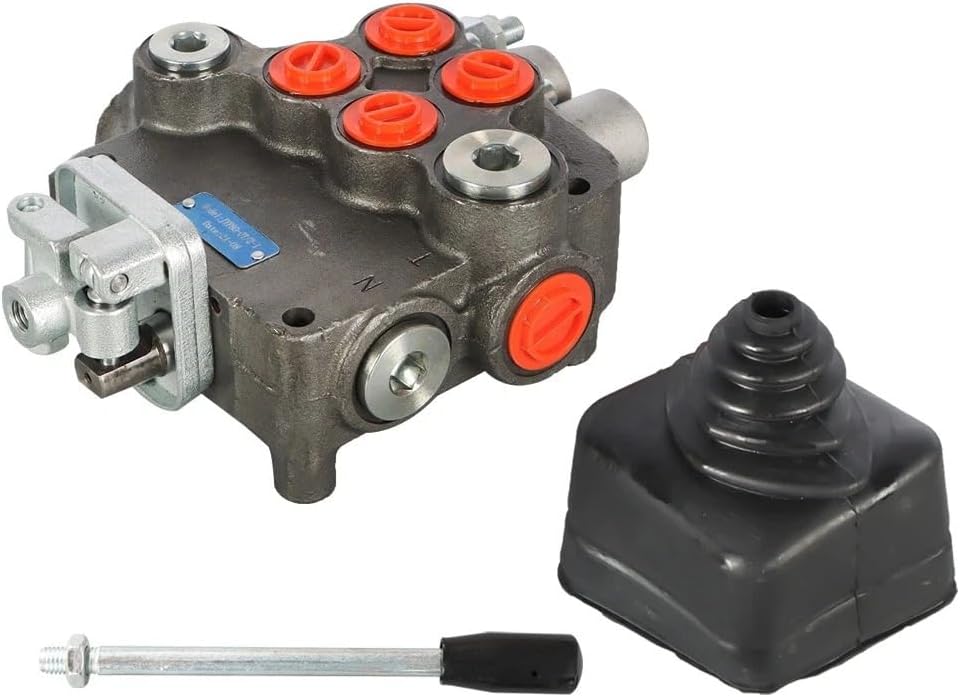

2 Spool 21GPM Hydraulic Directional Control Valve For Tractor Loader w/Joystick

Description: This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors. 2 Spool valve with compact design allows for installations in tight areas All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders Used for open center systems (Pump to Tank Flow) Anti-drop load checks on each spool Precision ground and hard chrome-plated spools assure a long life High-tensile strength cast iron monoblock construction SAE O-Ring ports ensure solid seal and prevent blockages Capable of Closed Center or Power Beyond (conversion plug required) Vertical or horizontal handle mount Adjustable Relief Valve Range: 1500 to 3625 PSI Used as motor or single-acting spool possible (#10 SAE port plug required) Features: Double Acting: Hydraulic control valve for operating double acting cylinders. Durable Quality: This hydraulic directional control valve comes with 2 spool, with cast iron construction for long-time use. Spring Return : All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders. High-Efficiency: The relief valve range is up to 3625 PSI and the maximum flow is up to 21 GPM. Wide Application: Fit for small tractors, tractors loaders, log splitters, and etc. Specification: Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI Flow Rating: 21 GPM (80 l/min) A & B Work Ports: #10 SAE O-Ring (7/8”-14) Thread Inlet Port: #10 SAE O-Ring (7/8”-14) Thread Outlet Port: #12 SAE O-Ring (1-1/16”) Thread 3 – 5/16” Mounting Holes Common Uses: Operate hydraulic cylinders (Double-Acting or Single-Acting) Operate hydraulic motors ("D" Spool Required) Install rear remotes on a tractor Package Included： 1×2 Spool 21GPM Hydraulic Directional Control Valve Note： Please make sure that the model and appearance of your equipment are exactly the same as our products. It is the customer's responsibility to buy the right products. If you are not sure, please contact us in time. Thank you for your cooperation

• Description: This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors. 2 Spool valve with compact design allows for installations in tight areas, All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
• Used for open center systems (Pump to Tank Flow) , Anti-drop load checks on each spool, Precision ground and hard chrome-plated spools assure a long life, High-tensile strength cast iron monoblock construction, SAE O-Ring ports ensure solid seal and prevent blockages, Capable of Closed Center or Power Beyond (conversion plug required), Vertical or horizontal handle mount, Adjustable Relief Valve Range: 1500 to 3625 PSI, Used as motor or single-acting spool possible (#10 SAE port plug required)
• Features: Double Acting: Hydraulic control valve for operating double acting cylinders. Durable Quality: This hydraulic directional control valve comes with 2 spool, with cast iron construction for long-time use. Spring Return : All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders. High-Efficiency: The relief valve range is up to 3625 PSI and the maximum flow is up to 21 GPM. Wide Application: Fit for small tractors, tractors loaders, log splitters, and etc
• Specification: Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI, Flow Rating: 21 GPM (80 l/min), A & B Work Ports: #10 SAE O-Ring (7/8”-14) Thread, Inlet Port: #10 SAE O-Ring (7/8”-14) Thread, Outlet Port: #12 SAE O-Ring (1-1/16”) Thread, 3 – 5/16” Mounting Holes
• Common Uses: Operate hydraulic cylinders (Double-Acting or Single-Acting), Operate hydraulic motors ("D" Spool Required), Install rear remotes on a tractor
• Note： Please make sure that the model and appearance of your equipment are exactly the same as our products. It is the customer's responsibility to buy the right products. If you are not sure, please contact us in time. Thank you for your cooperation
